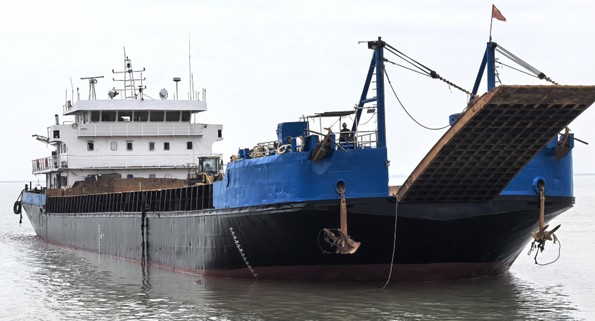

2013 Built 1500 DWT Landing Craft Tank

Ship Particulars

Ship Name: N/A
Port of Registry: Wenzhou City, China
Ship No: LC-0714
Classification Society: ZC
Navigation Area: A1 + A2
Type: Landing Craft Tank
Crew: 10

Dimensions

Overall Length: 72.20M
Length × Breadth × Depth: 69.59M × 15.20M × 3.78M
Full Loaded Waterline Length: 70.05M
Draft (Light/Load): 1.730M / 2.160M

Capacity

Cargo Capacity: 1485T
Displacement (Light/Load): 1617.520T / 2073.260T
GRT / NRT: 1288T / 721T

Engine & Performance

Main Engine: ZiChai Z6170ZLCZ-4
Power: 2 × 350kW @ 1200 rpm
Engine Build Date: Oct 2013
Oil Consumption: 1.7T/D
Average Speed: 8 Knots

Generators

Generators:
2 × 50kW @ 1500 rpm
1 × 15kW @ 1500 rpm
1 × 15kW @ 1500 rpm

Survey Information

Date of Completion: Dec 13, 2013
Last Docking Survey: Mar 8, 2024
Next Dry Dock: Dec 13, 2028
