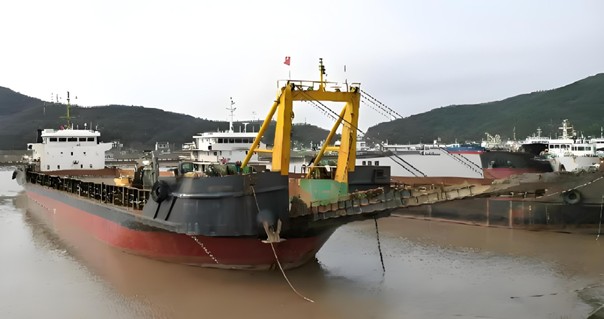

2017 Built 3100 DWT Landing Craft Tank

Ship Particulars

Ship Name: N/A
Port of Registry: YanCheng City,China
Ship No: LC-0795
Classification Society: ZC
Navigation Area: A1+A2
Type: Landing Craft Tank

Dimensions

Overall Length: 82.70M
Length×Breadth×Depth: 77.40M×18.00M×4.50M
Full Loaded Waterline Length: 78.86M
Draft (Light/Load): 1.846M / 3.350M

Capacity

Cargo Capacity: 3100T
Gross Tonnage: 1864T
Net Tonnage: 1043T

Engine & Performance

Main Engine: YuChai Diesel Engine (YC6C730L-C20)
Power: 2×220kW @ 1000 rpm
Oil Consumption: 1T/D
Average Speed: 8 Knots

Generators

Generators:
2×TZH-250M4-TH, 75kW @ 1500 rpm
1×TFX-225M4-H, 50kW @ 1500 rpm
1×STC2-30H, 30kW @ 1500 rpm
