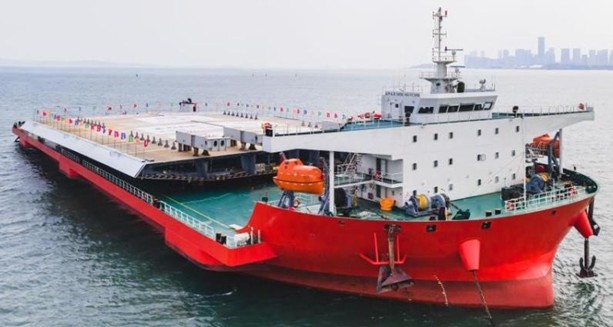

2022 Built 21000 DWT Landing Craft Tank

Ship Particulars

Ship Name: N/A
Port of Registry: ZhongShan City,China
Ship No: LC-0316
Classification Society: ZC + CCS Survey
Navigation Area: A1+A2
Type: Landing Craft Tank

Dimensions

Overall Length: 147.60M
L×B×D: 143.48M×40.20M×9.20M
Full Loaded Waterline Length: 145.88M
Draft (Light/Load): 5.875M / 6.400M

Capacity

Cargo Capacity: 21760T

Engine & Performance

Main Engine: GuangChai Diesel Engine (8320ZCd-10)
Power: 2×2427kW @ 550 rpm
Oil Consumption: 11T/D
Average Speed: 8 Knots

Generators

Generators:
2×SB-HW4.D-500,500kW@1500 rpm
1×SB-HW4.D-150,150kW@1500 rpm
1×SB-HW4.D-64,64kW@1500 rpm
