Ship Particulars
Ship Name: N/A
Port of Registry: Monrovia
Ship No: SS-0832
Classification Society: ABS
Navigation Area: A1+A2+A3 (International Going)

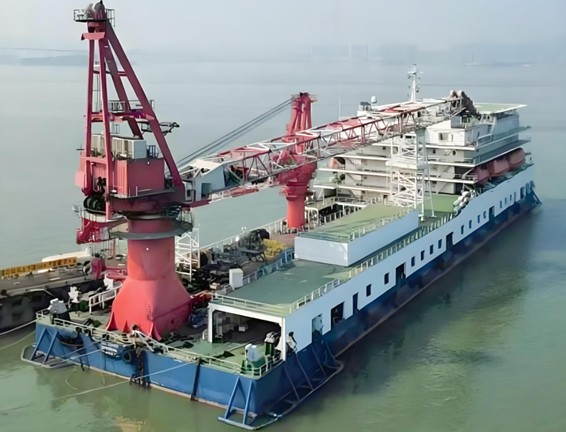

Type: Anchor Handling Tug Supply
Dimensions
Length × Breadth × Depth: 113.83M × 31.70M × 7.30M
Operation Draft: 3.80M

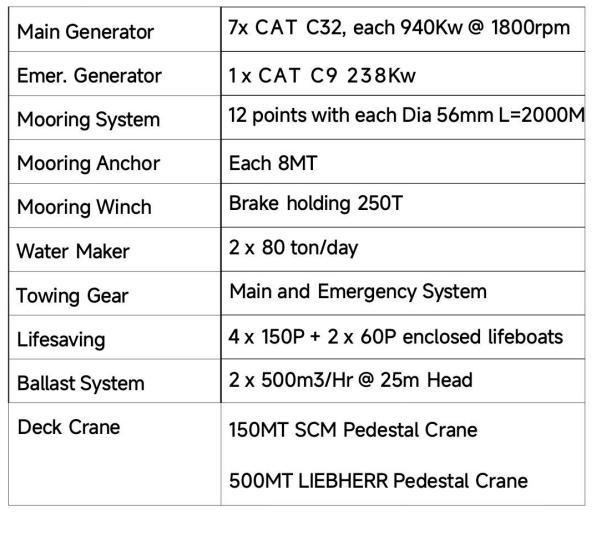

Capacity & Deck Equipment
Deck Load: 15 T/m²
Accommodation: 360 Persons
Deck Crane:
500MT LIEBHERR Pedestal Crane
150MT SCM/TTS Pedestal Crane (PHC)
Mooring System
Mooring System: 12 points, 100T by HTM / East Marine
Mooring Anchors: 8MT each with Dia 56 rope (2000M)
Mooring Winch: Brake holding 250T
Generators
Generators:
7 × Caterpillar C32 (940kW @ 1800 rpm)
1 × Caterpillar C9 (238kW @ 1800 rpm)
