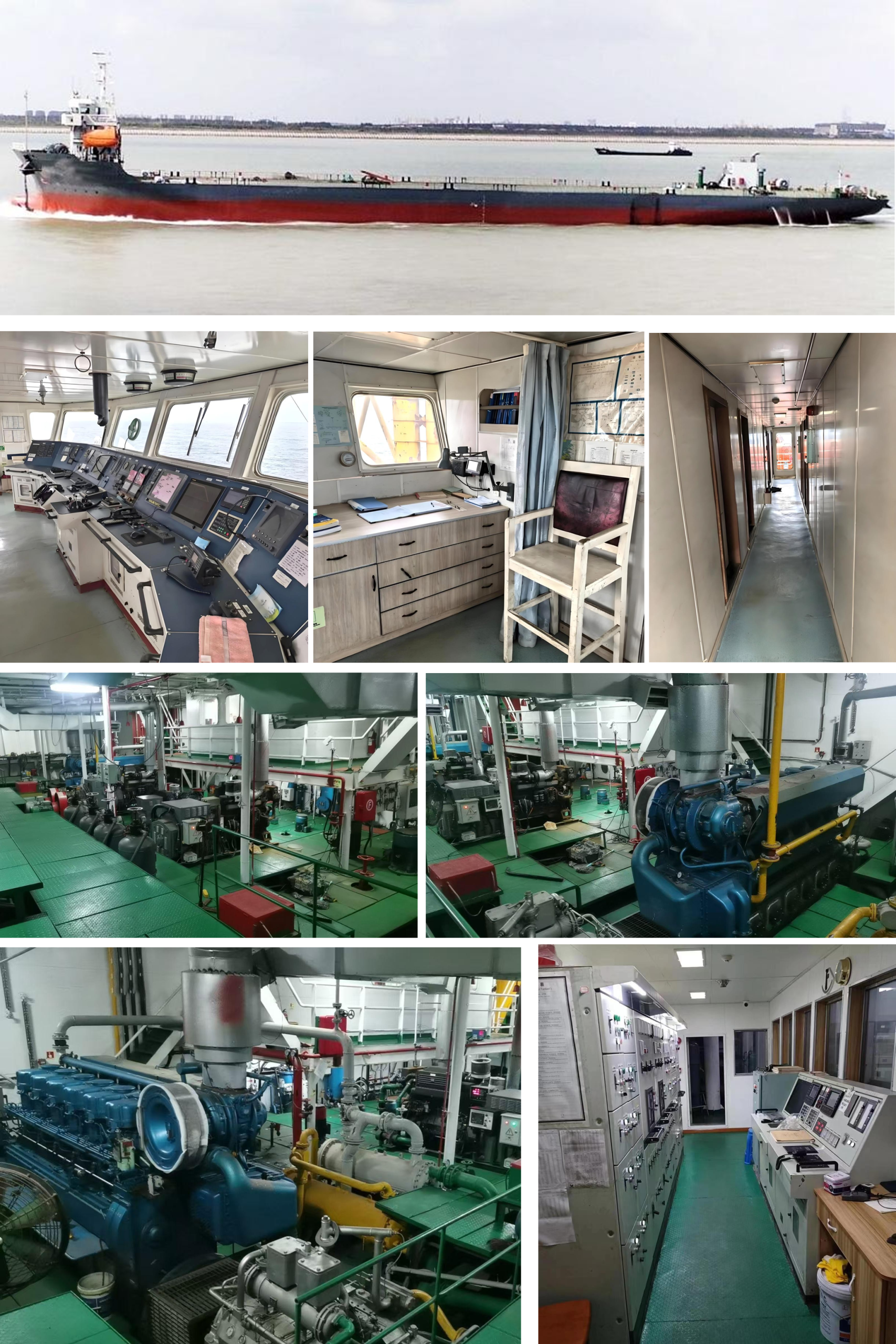

Landing Craft Tank 8000T – 131M (2022 Built, ZC)

Ship Particulars

Ship Name: N/A
Port of Registry: Yangzhou City, China
Ship No: LC-0500
Classification Society: ZC
Navigation Area: A1 + A2
Type: Landing Craft Tank
Crew: 12

Dimensions

Overall Length: 131.20M
Length × Breadth × Depth: 125.00M × 32.00M × 7.60M
Full Loaded Waterline Length: 127.45M
Draft (Light/Load): 3.673M / 5.400M

Capacity

Cargo Capacity: 8000T
Displacement (Light/Load): 4881.000T / 18522.200T
GRT / NRT: 8268T / 4630T

Engine & Performance

Main Engine: GuangChai 8320ZCd-10
Power: 2 × 1470kW @ 600 rpm
Engine Build Dates: Oct 2021 / Nov 2021
Oil Consumption: 6.6T/D
Average Speed: 12 Knots

Generators

Generators:
2 × 250kW @ 1500 rpm
1 × 50kW @ 1500 rpm
1 × 75kW @ 1500 rpm
1 × 64kW @ 1500 rpm

Survey Information

Date of Completion: Oct 13, 2022
Last Docking Survey: Oct 13, 2022
Next Dry Dock: Oct 12, 2027
